Light Monkey – 20 Ah Dual Output Heater Pack with Heater Controller v2.0
Price range: $1,485.00 through $1,530.00
-
Description

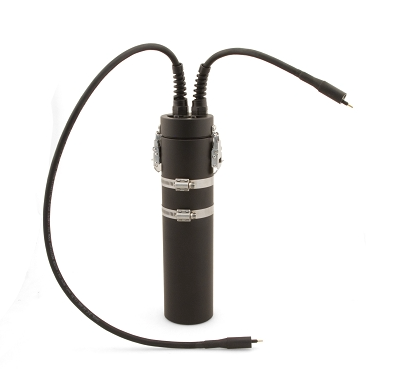

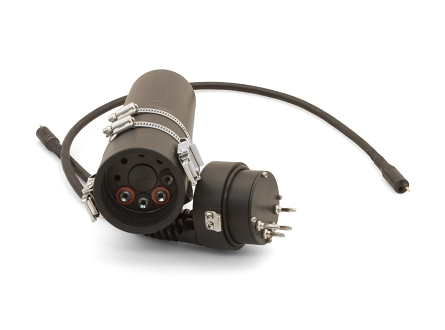

Light Monkey – 20 Ah Dual Output Heater Pack with Heater Controller v2.0
Includes battery, canister, Heat Control v2.0 integrated dual outlet lid, two E/O cords, and charger
Powered by two 10.4aH (115wH) Li-Ion batteries
Allows for a wide variety of light head and dry-suit heating equipment configurations
- Standard E/O cord lengths are 32″ (81.28 cm) on lighthead side and 12″ (30.48 cm) on heater side. Custom lengths can be ordered in the comment section at checkout.
- Length – 11″ (31.75 cm)
- Diameter – 3″ (7.62 cm)
- Dry Weight – 5.675 lbs (3.2 kg)
- Negative in Water – 1.875 lbs (2.6 kg)
- Recharge time from complete discharge – 12 hours
- UN 38.3 Test Compliant – BATTERY IS SAFE FOR AIR TRANSPORT
Heat Controller v2.0
HCv2.0 is the latest upgrade to our line of drysuit heating technology. As a modern improvement to our first design, this more robust controller board features a ramp up circuit to prevent voltage spikes from the inrush of current.

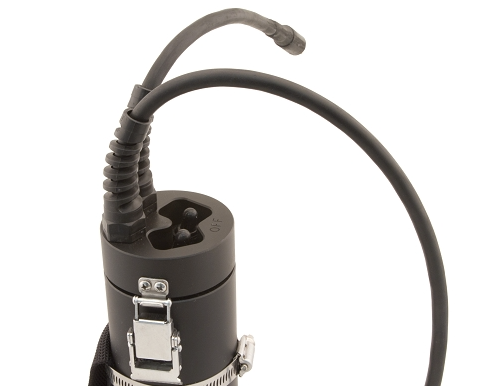

The heat controller is designed to go inline between a battery canister and heated drysuit systems, and is available lid-integrated or as a stand-alone unit. A lid with an integrated heat controller will be indicated by a tab of red heat-shrink on the cord.
It is recommended to use a HC integrated battery pack for heated undergarments ONLY. Plugging a light head into an E/O inline with a heat controller can cause damage to your light head and potentially void the warranty.
How it works – Light Monkey Heat Controller v2.0
When switching the power on, the output will be at 100%. By toggling the lid switch off/on, the power going to the heated undergarment is reduced, and burn time extended. Simply repeat this process until the ideal power level is reached. Power levels available are 100%, 80%, 60%, and 40%. To reset back to 100%, simply switch the canister off for ten seconds.
If utilizing a Stand-Alone HCv2.0, the indicator LED will flash for every dropdown in power.
- 100% – Indicator remains on
- 80% – 3 Flashes
- 60% – 2 Flashes
- 40% – 1 Flash
It is recommended to use a HC integrated battery pack for heated undergarments ONLY. Plugging a light head into an E/O inline with a heat controller can cause damage to your light head and potentially void the warranty.
|
