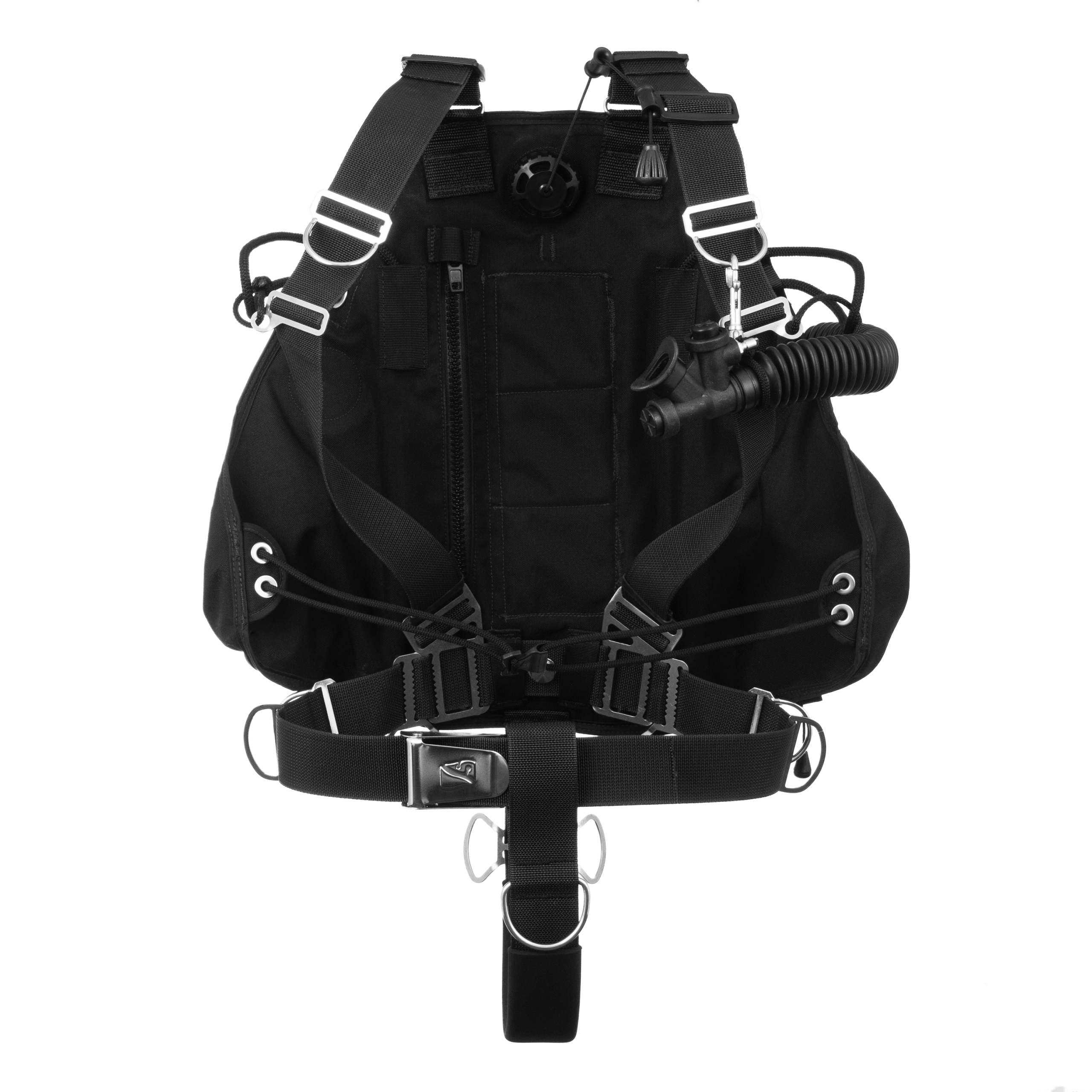

Dive Rite – Nomad Ray Sidemount System

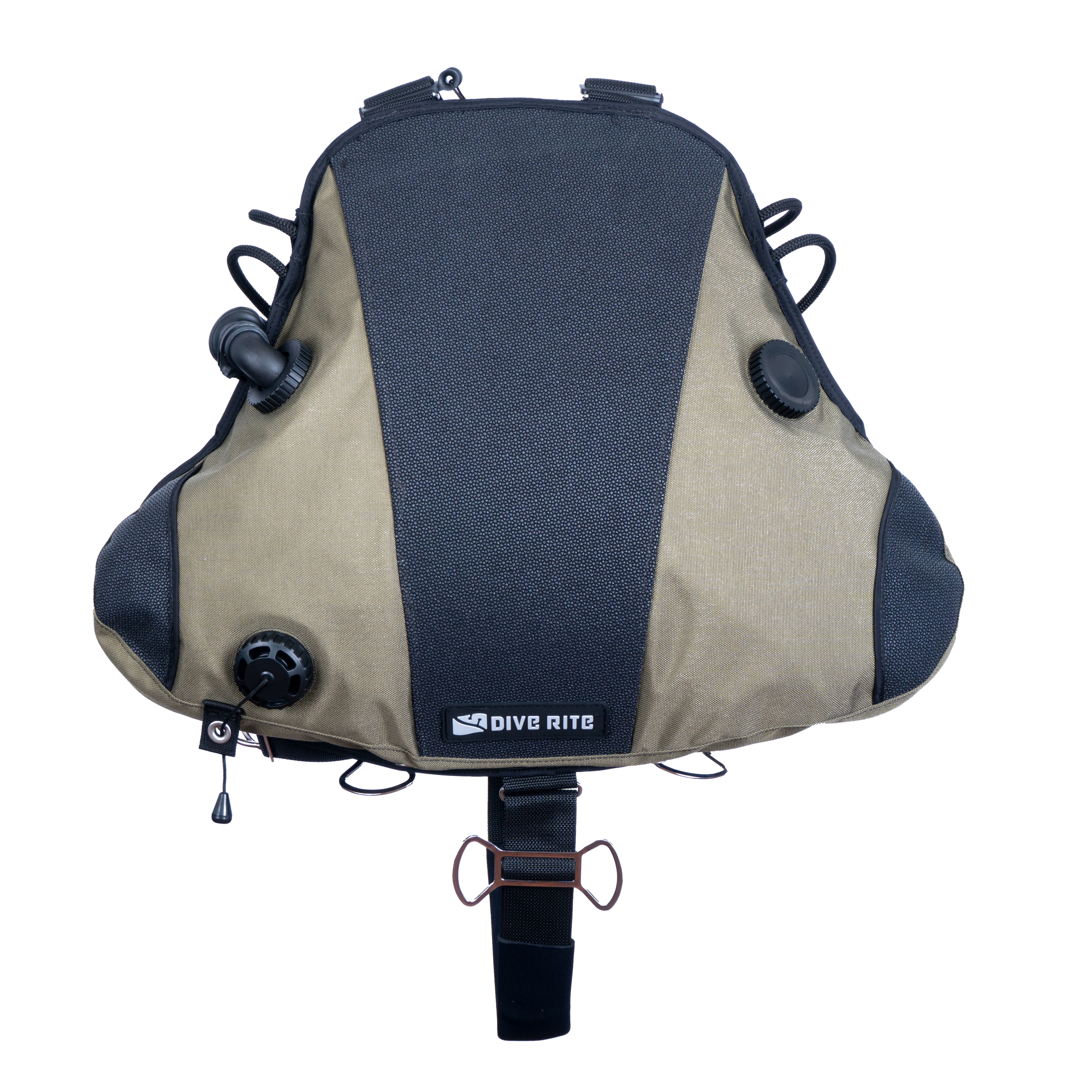

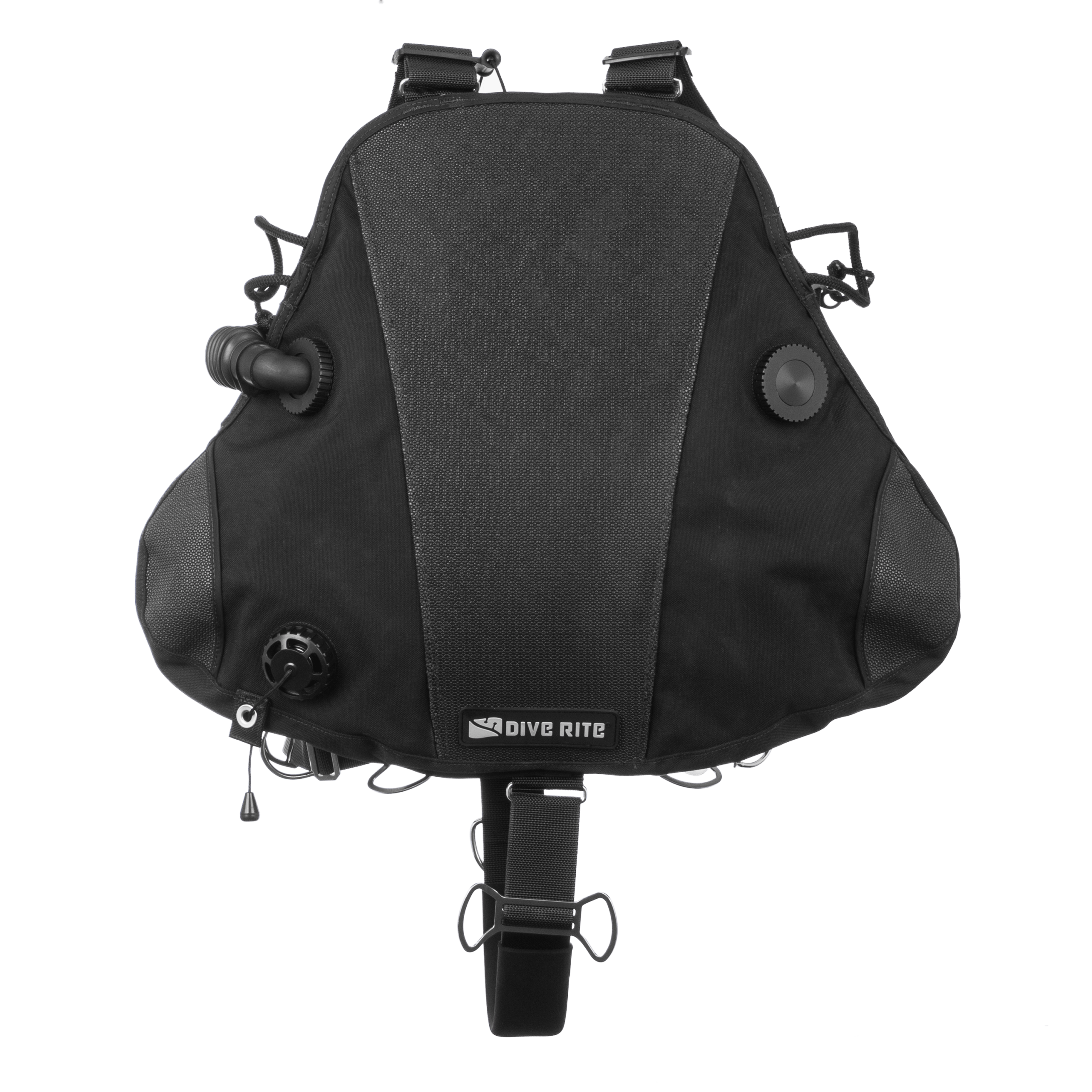

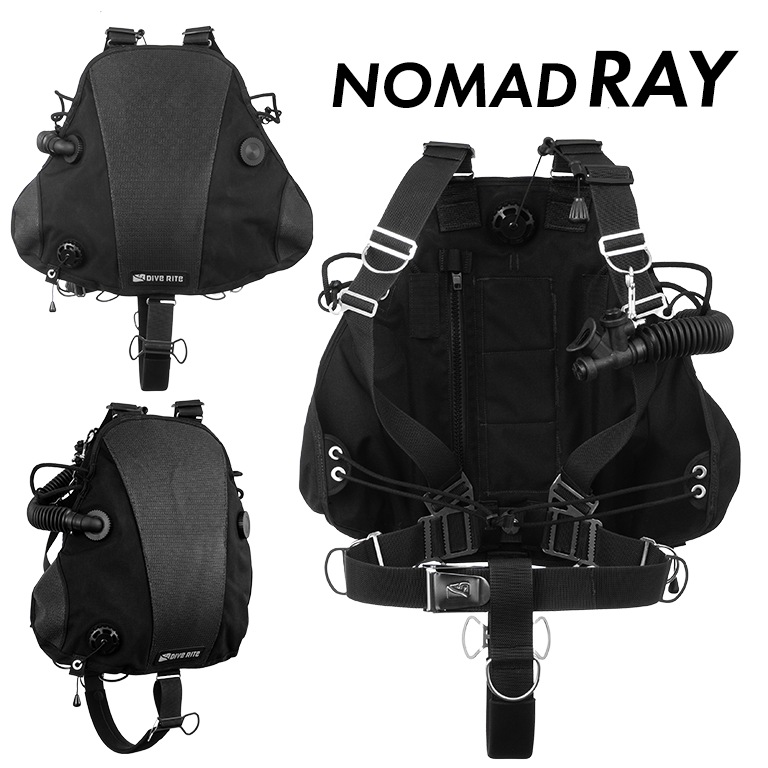

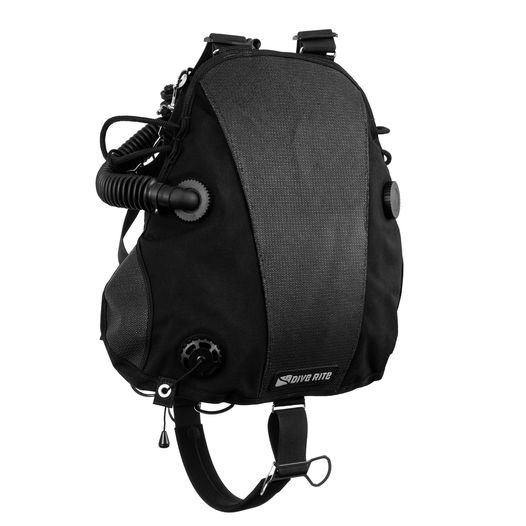

Nomad Ray

The Nomad Ray represents the culmination of extensive design, testing, and feedback from top sidemount divers and instructors worldwide. It boasts a sleek, ergonomic design that fits snugly against the diver’s body, offering a flat and streamlined profile. With its array of unique and innovative features, the Nomad Ray is sure to meet the needs of sidemount divers at any experience level.

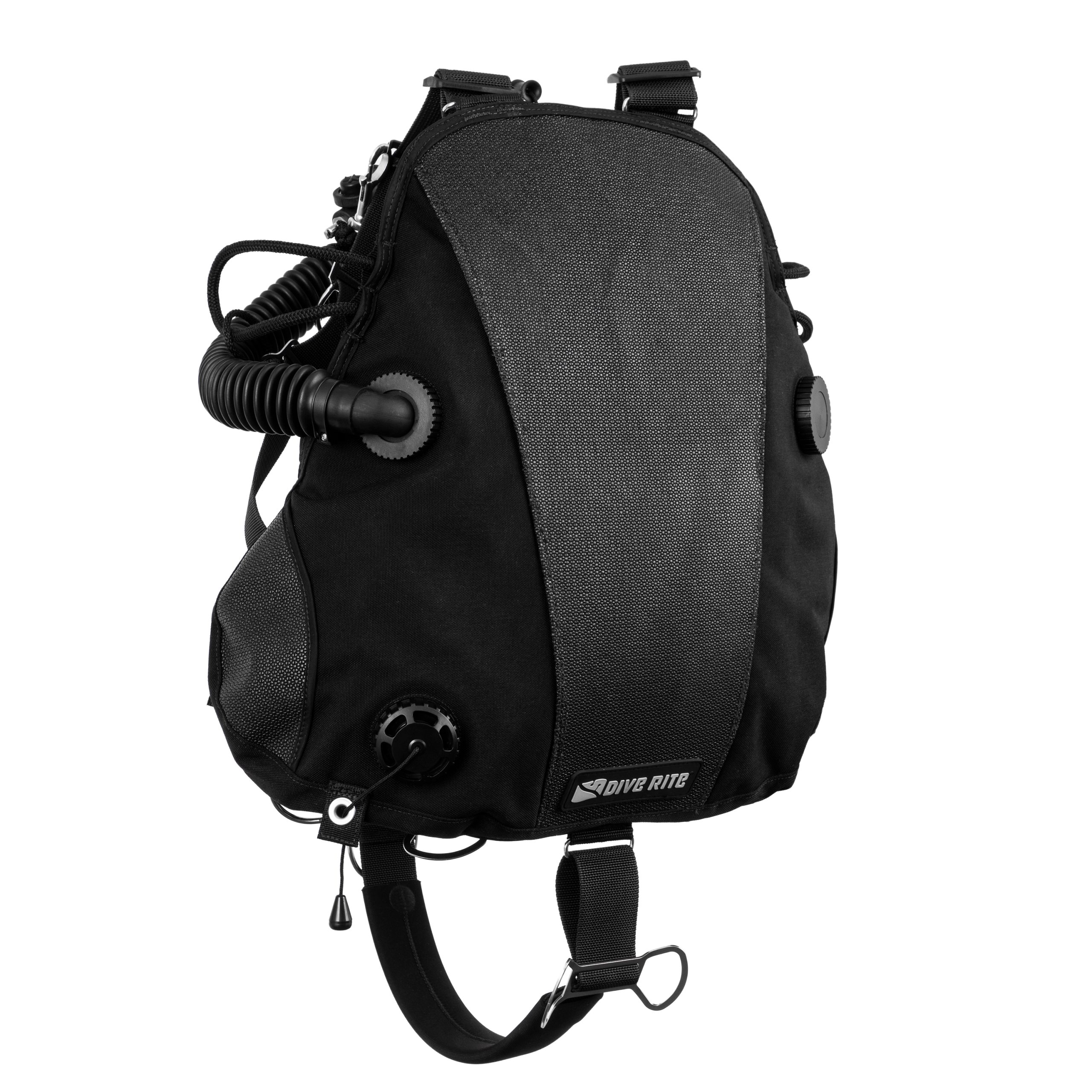

• Superfabric® Abrasion Resistant Panel The Nomad Ray features a full-length abrasion-resistant “skid plate” made of Superfabric®, a material known for its quick-drying, durable, and slash-resistant properties. This skid plate offers essential wear protection in challenging diving conditions.
• Bungees and Belly Band The Nomad Ray utilizes a convenient tool-less bungee length adjustment system for quick and easy customization. The integrated belly band, along with custom-molded bungee hooks, ensures a secure fit around the diver’s body, enhancing comfort and stability.
• Rapid Adjustment With its independently adjustable harness design, the Nomad Ray can be swiftly configured to suit divers of all body types. The shoulder and waist webbing can be easily replaced individually if needed, allowing for hassle-free maintenance.
• Versatility Designed to accommodate various diving scenarios, the Nomad Ray is suitable for use with aluminum or steel tanks in both warm and cold water environments. Whether for entry-level sidemount dives or advanced technical exploration, this system’s 42lb lift capacity provides ample buoyancy for heavy tanks and additional equipment.

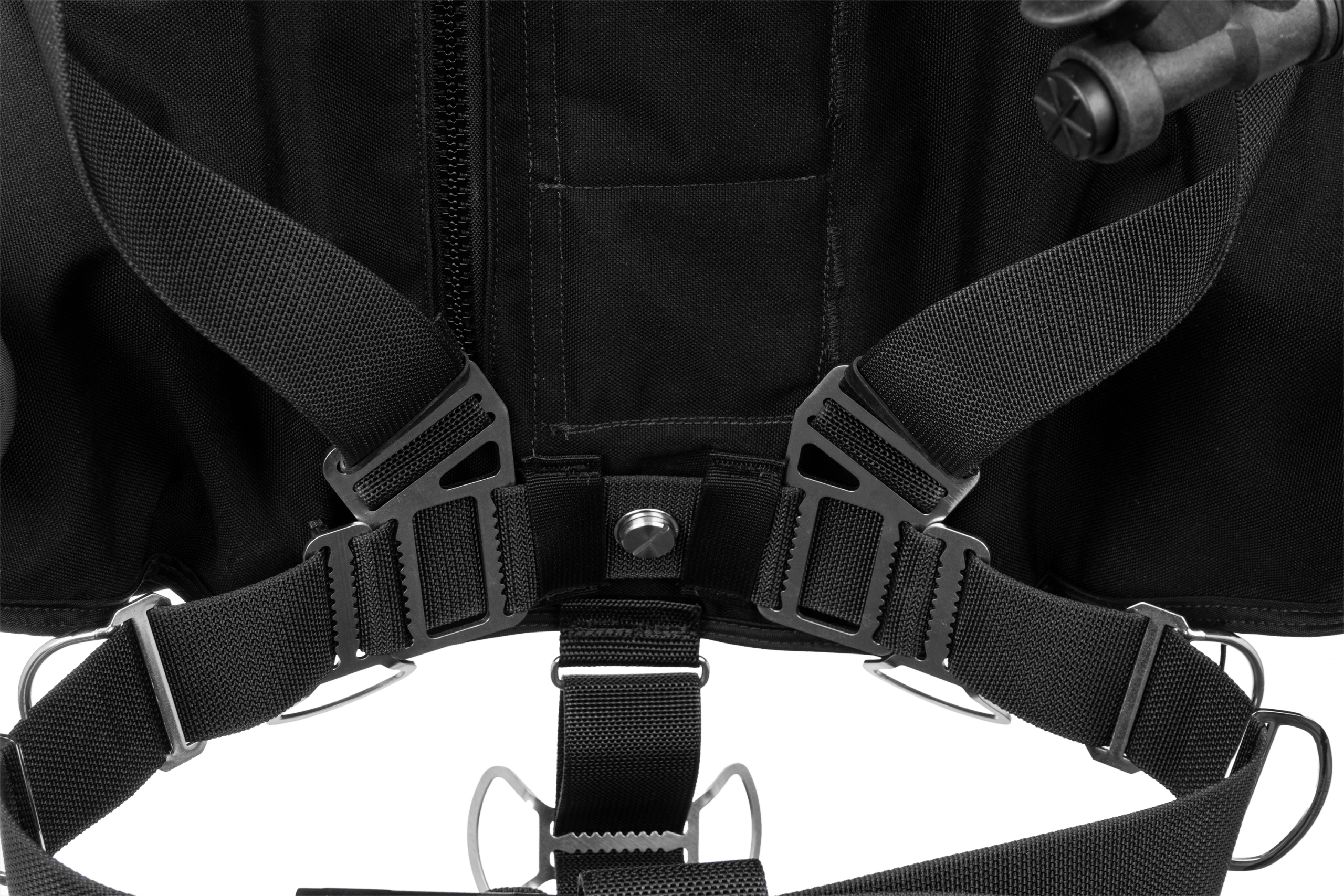

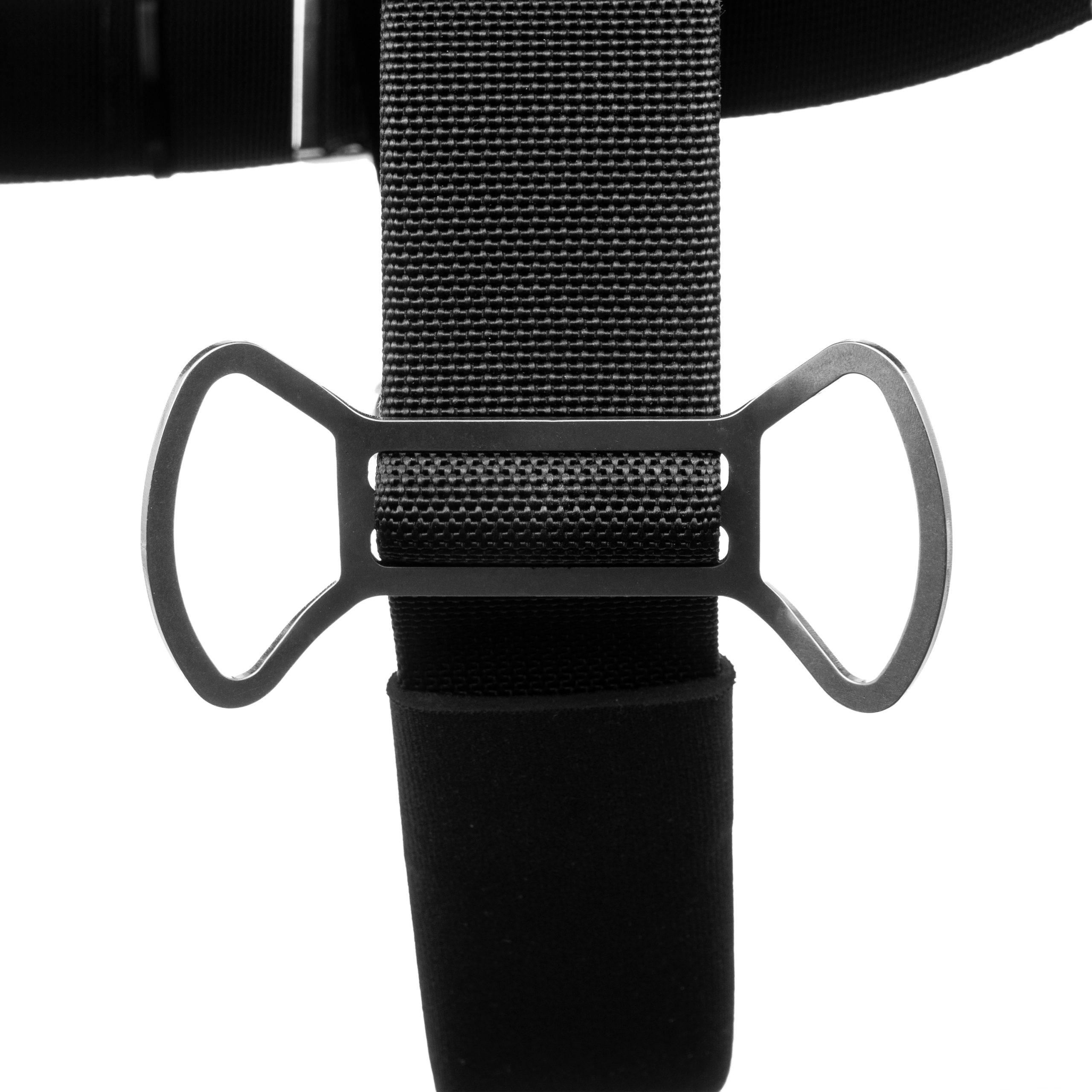

• Optimized Hardware – The Nomad Ray features custom-designed stainless steel hardware components, including waist transition plates, drop-down D-rings, sliding D-rings, a dog bone crotch strap double D-ring, and bungee retention slides.
• Integrated Internal Weight Pockets Equipped with three integrated weight pockets accessible via a zipper on the wing’s interior, the Nomad Ray can hold up to 5 pounds of hard or soft weight in each pocket. This design ensures a streamlined profile while allowing for quick adjustments to achieve optimal weight distribution.
• Inflation and OPVs The Nomad Ray includes a 16″ corrugated inflation hose that offers versatile mounting options for easy access to the inflator. The system also features two pull dump/overpressure valves (OPVs) strategically positioned for efficient buoyancy control and quick gas release during dives.

Nomad Ray Tech Specs

• Manufactured in the USA
• Outer Shell: SuperFabricâ„¢ material with 600 denier fabric for the back side center panel, and 1000 denier nylon fabric on the diver’s side.
• Inner Bladder: Heavy-duty 420 denier nylon laminated
• Lift Capacity: 42 lbs (19 kg)
• Optional Bailout Bladder Lift Capacity: 35 lbs (15.9 kg)
• Hose: 16 in (30.4 cm) corrugated with inflate/deflate valve. Can be configured on left or right side.

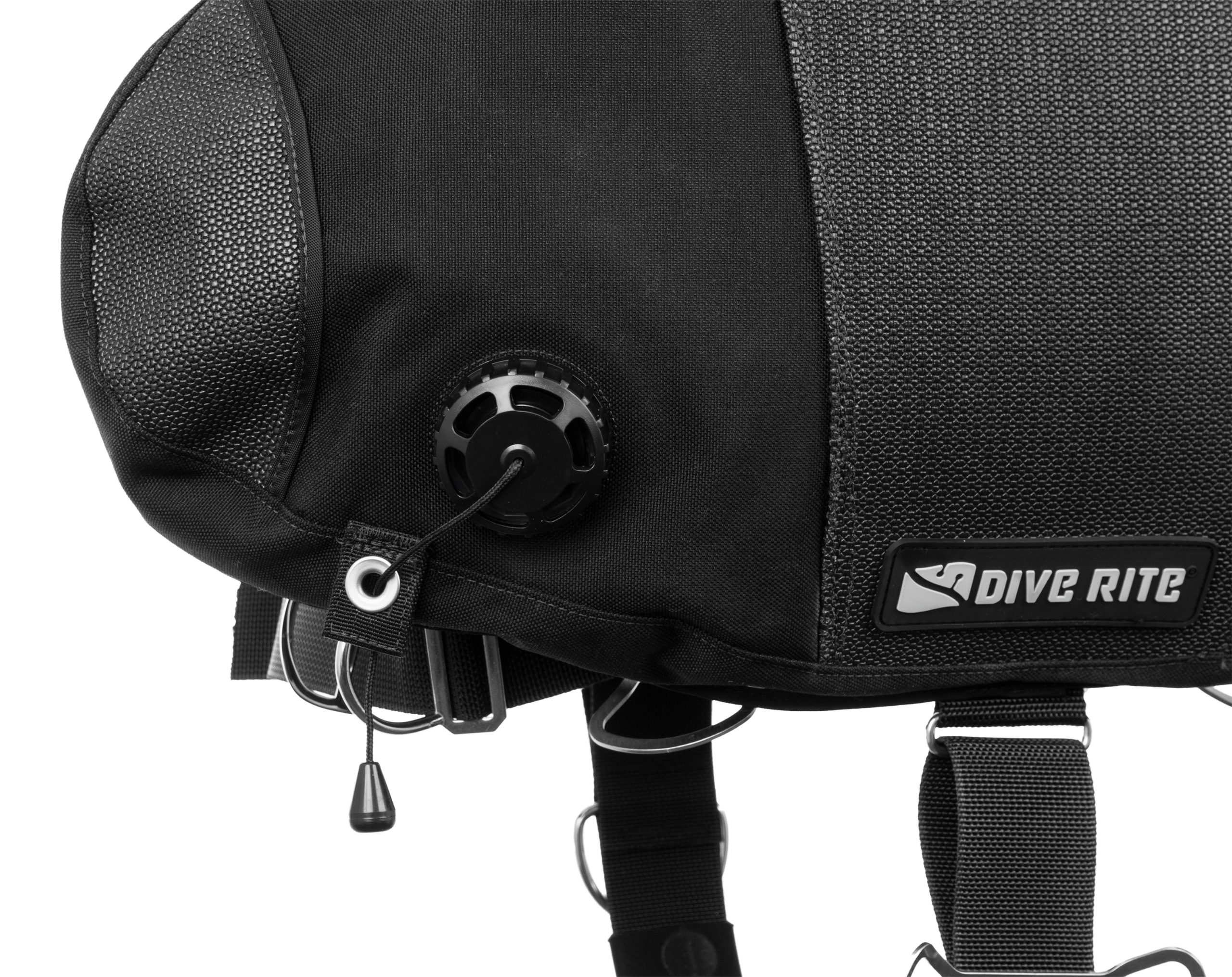

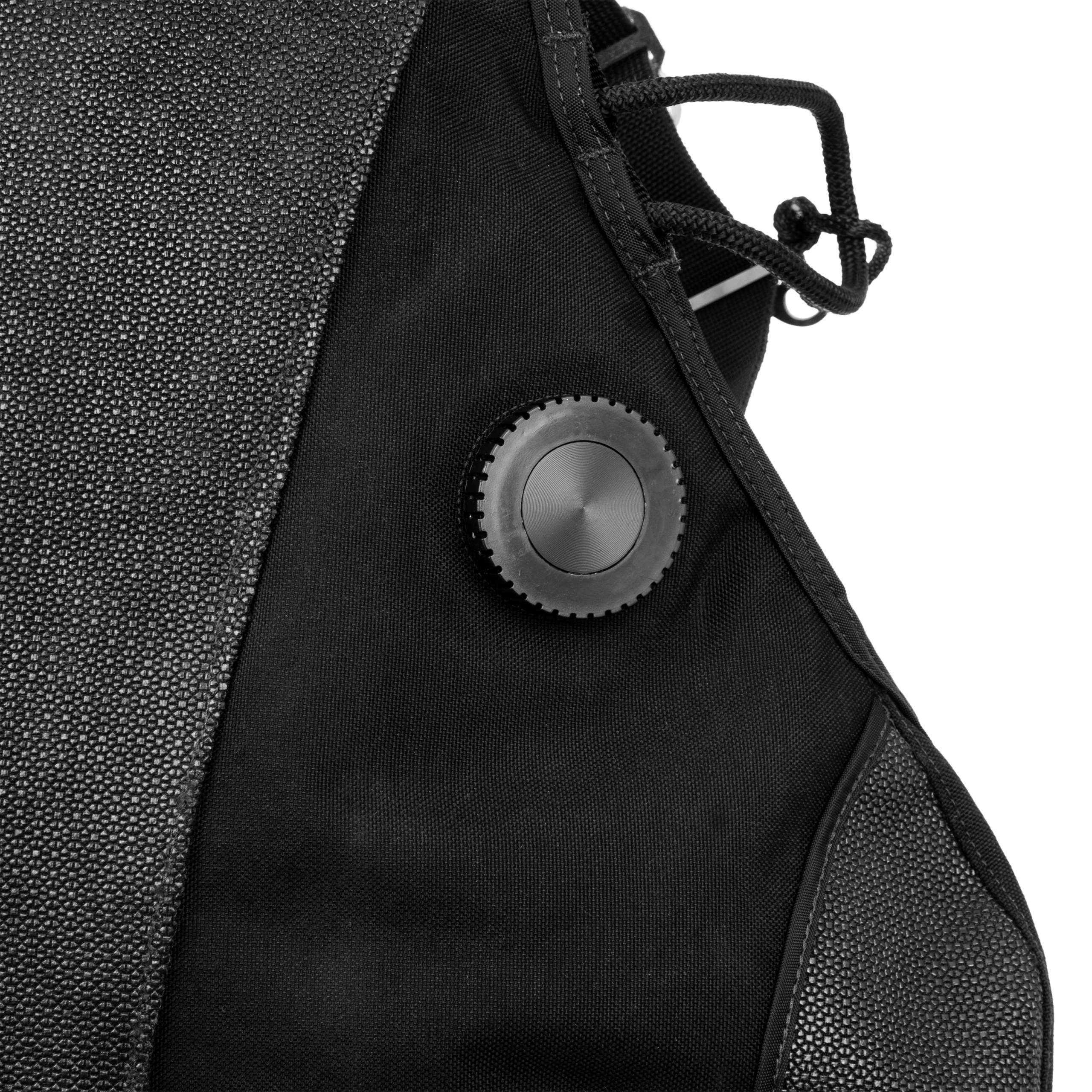

• Exhaust Valves: 1 pull-dump at top, center, and one at bottom/right corner of wing
• Internal weight pockets: 3 padded internal pockets that can hold up to 5 pounds each of either hard or soft weight
• Adjustable Bungee System: 42 in of diamond braid bungee for each side adjustment
• Crotch Strap: 2 in (5 cm) padded strap with scooter ring

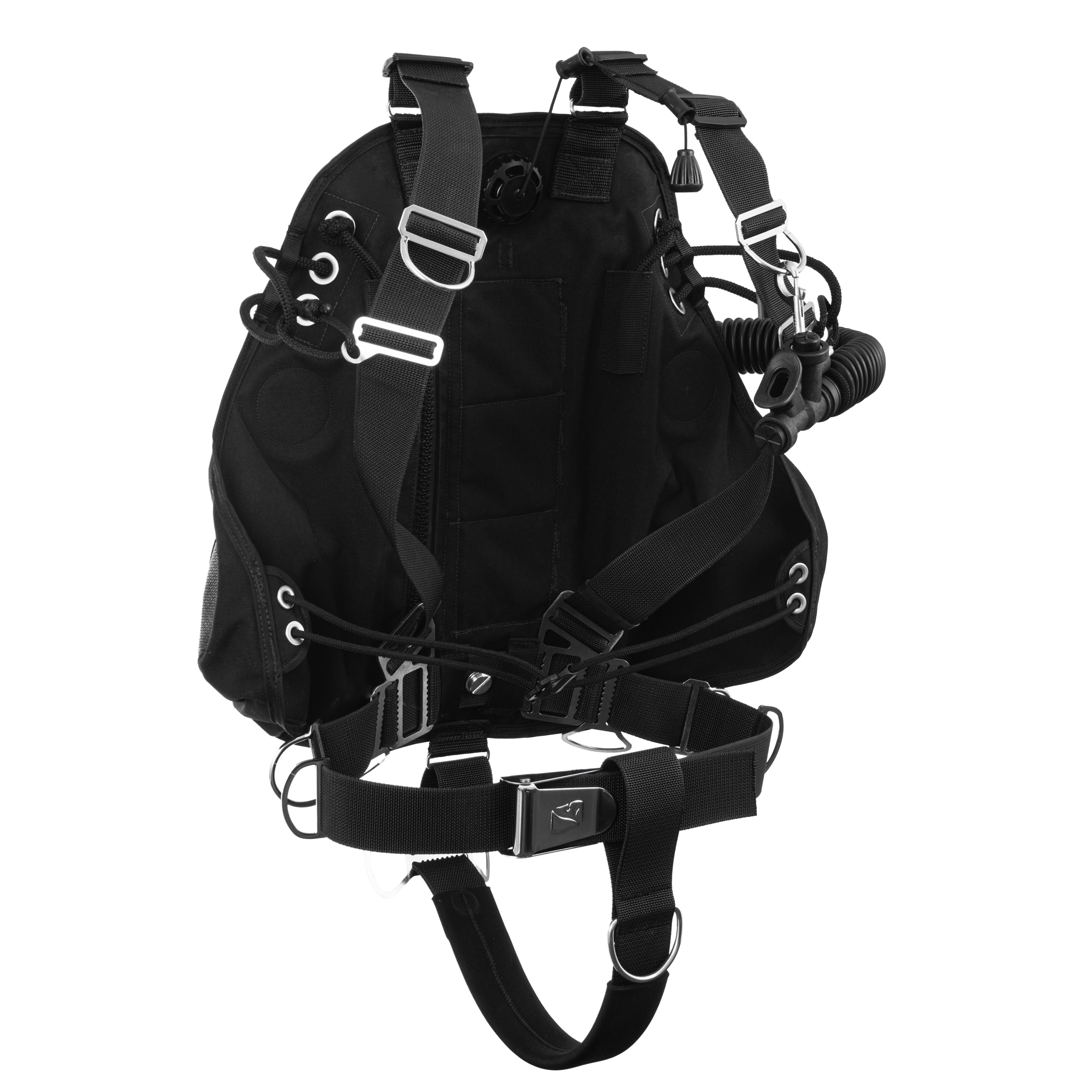

• Hardware: Marine-grade stainless steel throughout: 2 angled D-rings on shoulders, 2 angled D-rings on waist, 2 sliding waist D-rings, 2 chest bungee retainer slides, 2 rear drop D-rings for primary tank attachment, 1 dog bone double D-ring on crotch strap for accessories.
• User replaceable 2-inch harness webbing used throughout
• Sizing: Fully adjustable, one size fits all
• Weight: 5.7 lbs (2.59 kg)
