Description

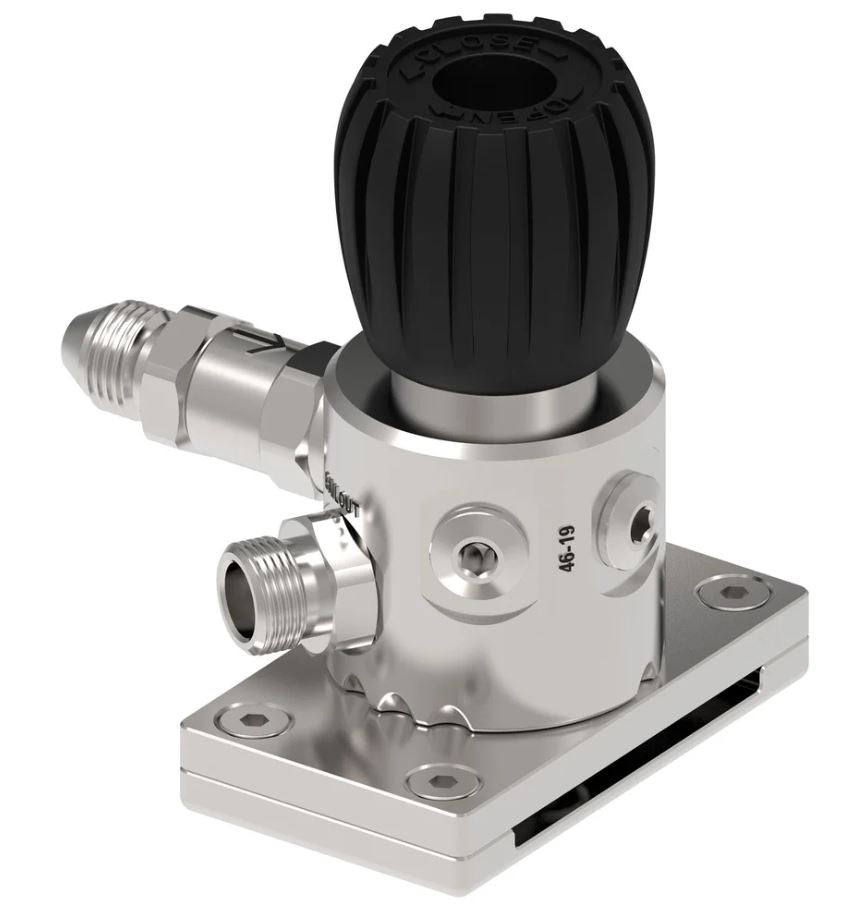

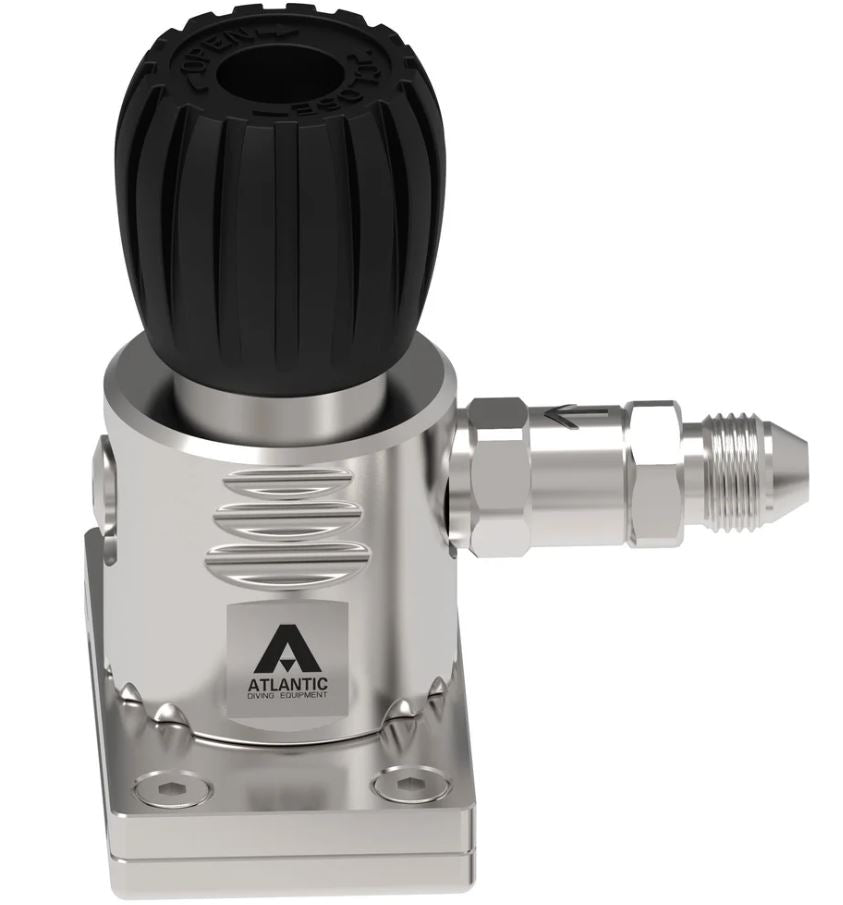

XS SCUBA – ADE Gas Switch Block

This durable gas switch block is essential for diving with a full-face mask. If your main gas source is cut off, activating the Gas Switch Block allows gas to flow from the emergency bailout bottle. The large activation knob is easy to find and use, even with cold water gloves. Includes 3 different inlet fittings.

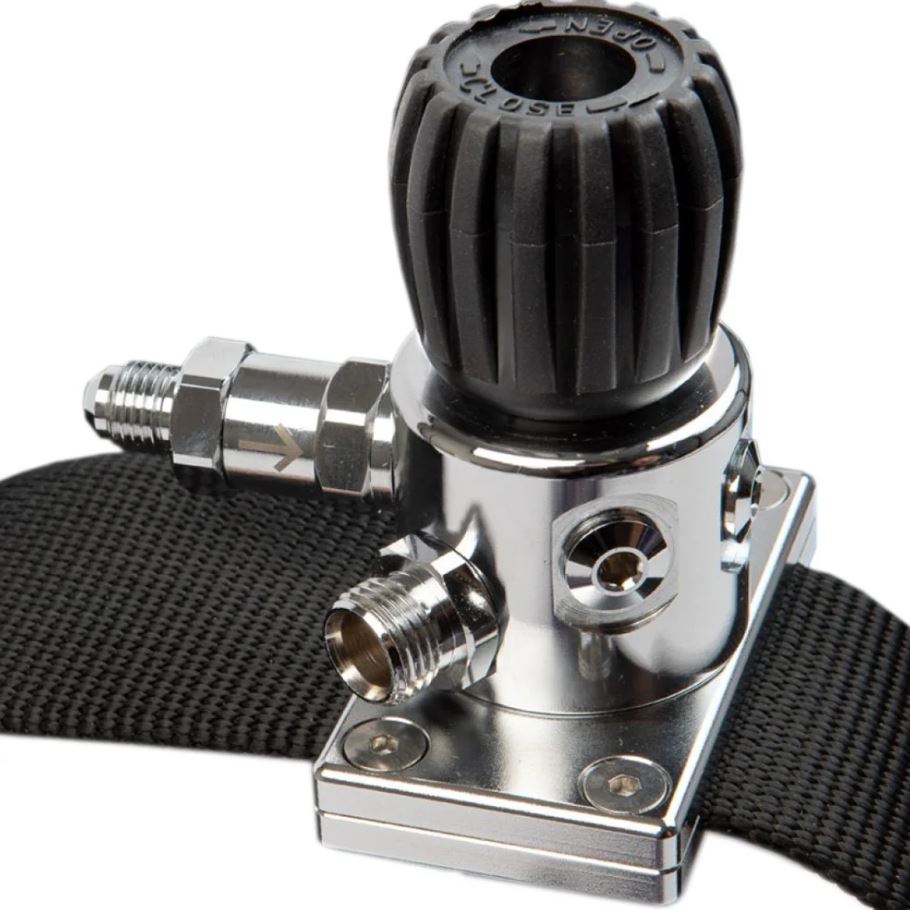

• Designed to attach to 2 in (50 mm) harness webbing

• When closed, 2 LP ports have open communication with the inlet port

• Opening the block enables gas to come in from the emergency reserve bailout bottle

• Ports are 3/8″-24 UNF

• A one-way check valve prevents gas from flowing back from the bailout bottle to the inlet supply

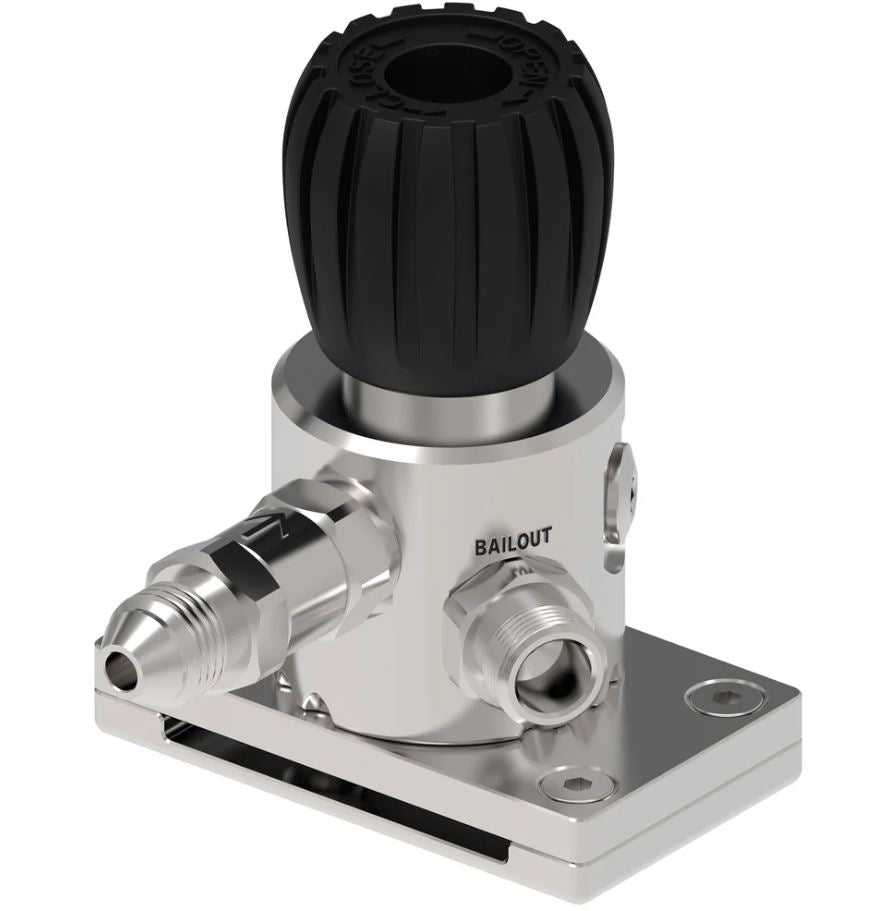

• Clearly labeled bailout port

• Bailout port is set up to accept a 9/16″-18 UNF regulator hose

• Inlet connector, with one-way valve, accepts 3 different inlet adapters included
  • 9/16″-18 UNF scuba regulator hose connector

  • JIC-4 – surface supply umbilical

  • JIC-6 – surface supply umbilical

• Large on/off knob is suitable for dry gloves

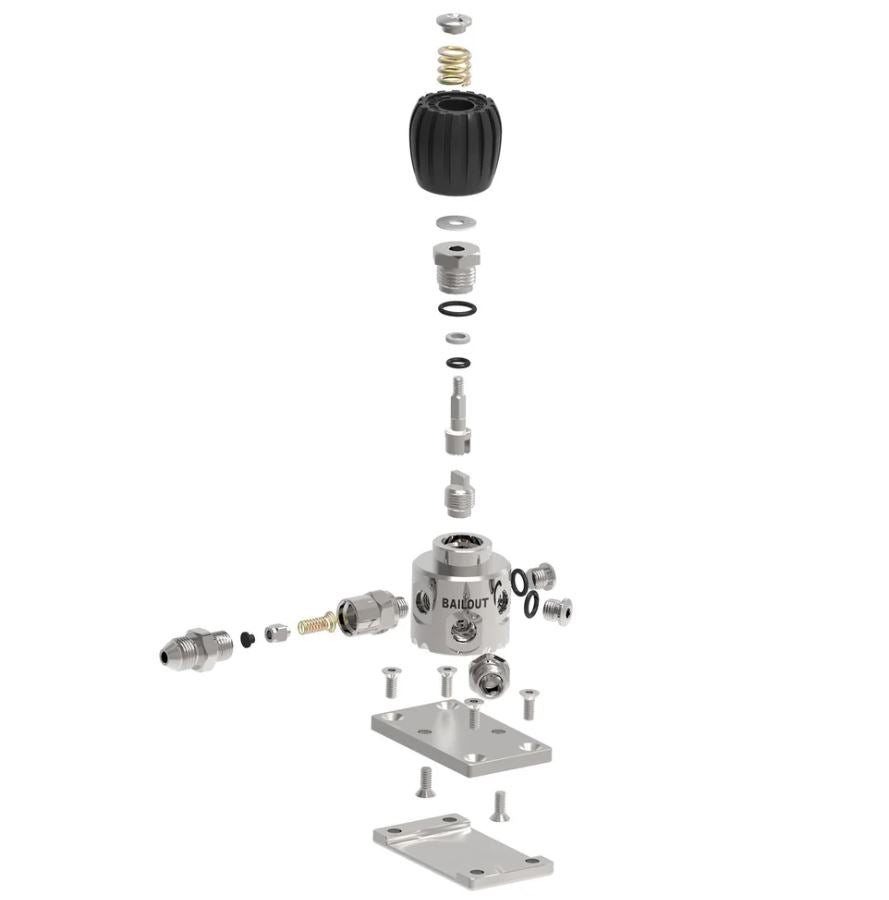

• Simple to maintain with service kits available
