With a dedicated mold, Sea&Sea incorporates a meniscus lens design in the UDP dome construction to reduce spherical aberration and beam waste. This results in gradual refractive power changes from the center to the peripheral area, creating a clearer focus compared to conventional ports.

The UDP 210 ARII uses the highest optical grade PMMA material with a refractive index close to glass for high light transmission. Sea&Sea also applies a 7-layer Anti Reflective (AR) coating to minimize internal reflection and decrease contrast effects.

Lens reflection 1 Comparison
Lens reflection 2 Comparison

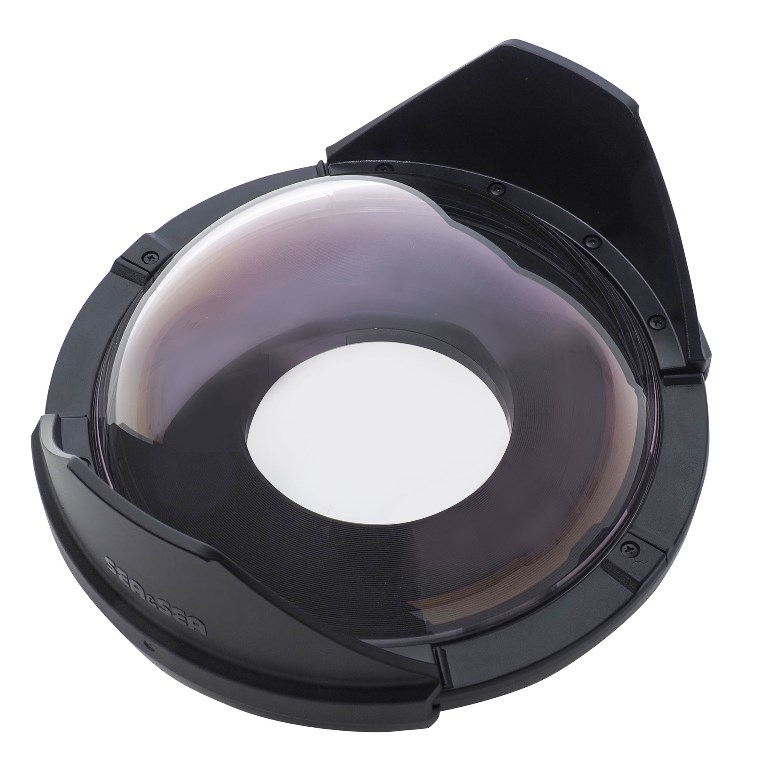

The dome is designed for easy replacement on the spot in any environment and comes with an additional bayonet mount for compatibility with 3rd party Nauticam housings.

*Compatible with all lenses listed on the port system chart when used with the UDP 210 AR.

Specifications
Size: Maximum diameter 250 mm x depth 104 mm. Dome Diameter 210mm
Weight: 1,310g (2.88 lbs)
Depth Rating: 100 M (328 ft)
Body Material: Corrosion-resistant aluminum alloy (anodized, internal anti-reflection coating)
Hood: ABS resin
Dome Material: Special optical PMMA
