Description

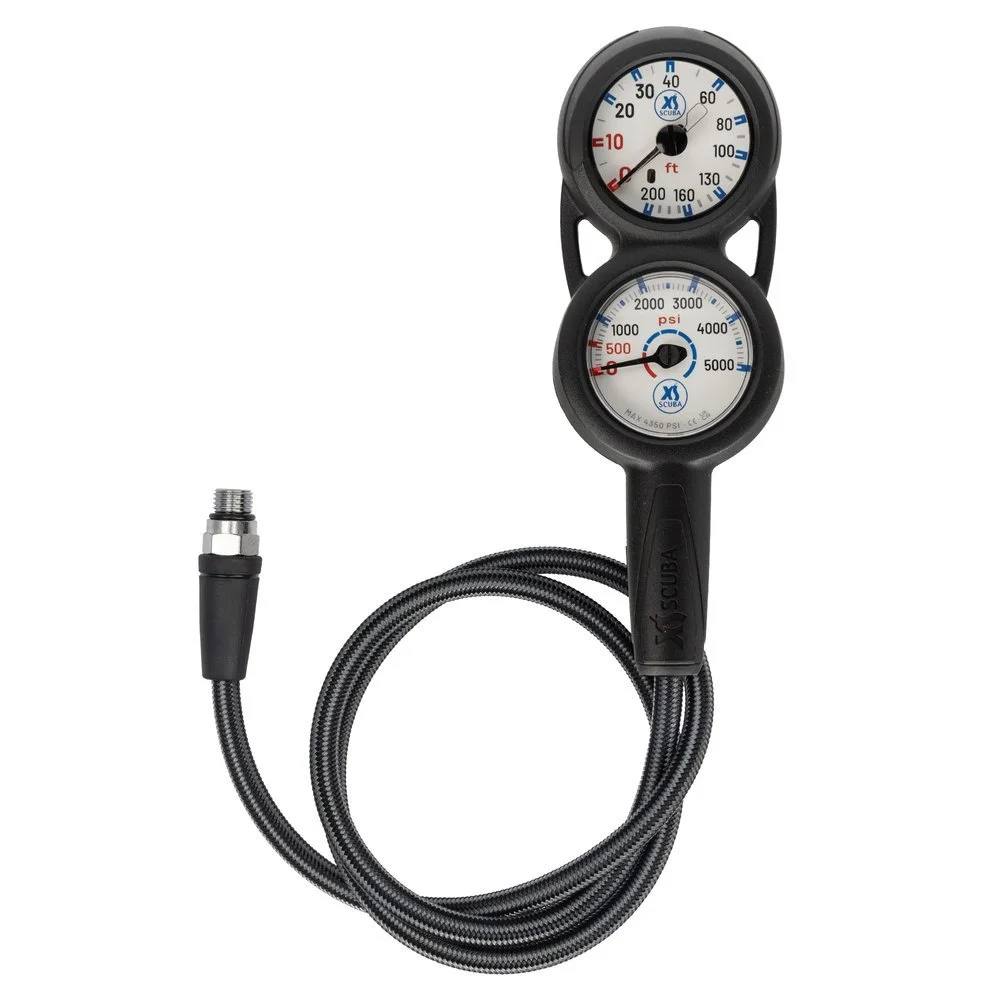

QuikVu Consoles are compact, lightweight, and have attachment points on both sides. The thin, braided HP hose is lighter weight and more flexible than a traditional rubber hose.
Front Side
Depth Gauge (p/n GP31, GP31M, GA31DS)
Depth gauge scale is 0 to 200 ft (0 to 60 m)
Includes a maximum depth indicator needle
Luminescent gauge face
Glass-filled nylon housing with shatterproof lens
Pressure Gauge (p/n GP28, GP28M, GA28DS)
Pressure gauge scale is 0 to 5000 psi (0 to 400 bar)
The Beryllium-Copper spiral-wound coil ensures greater reliability and compactness
Bourdon Tube design provides accurate measurements under depth
Luminescent gauge face
Back Side
Compass (p/n GP40)
Large gun sight style viewing window allows for easy and accurate navigation
Compasses have strong magnets to guarantee accuracy and quick response times
Reads accurately over a wide tilt range
The luminescent dial rests on a precision sapphire jewel
Large, secure 360掳 ratcheting bezel
Includes 32 in (81 cm) braided HP hose
CE 0598:EN 250 and UKCA 0120:EN250 certified
p/n鈥℅A310M (Metric)
