Description

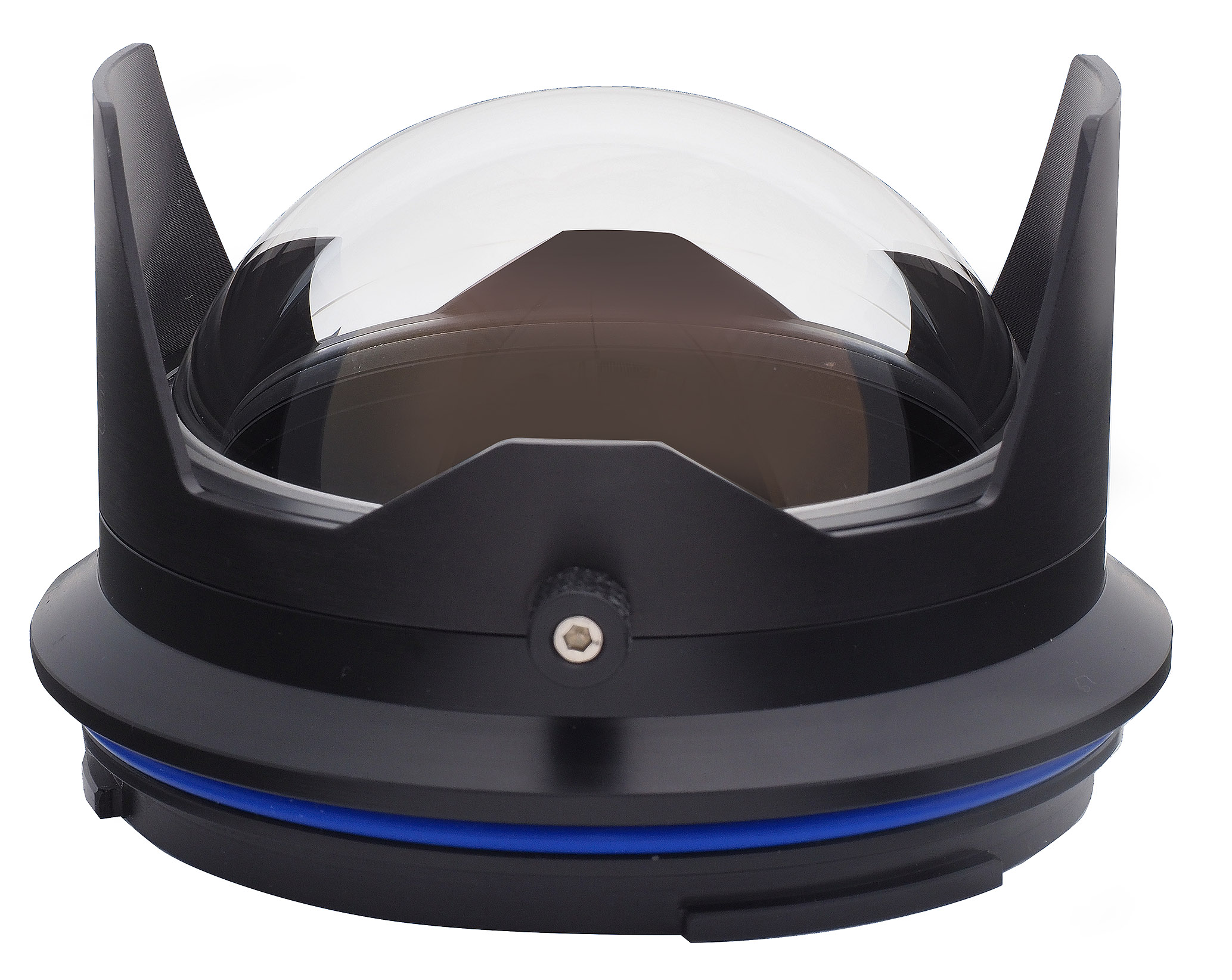

100 millimeters in diameter. The most compact and lightweight optical dome port SEA&SEA offers.
Designed exclusively for fisheye lenses.

Optical Dome Port II 100 S (#30133) (made-to-order item)
Designed exclusively for Nikon AF DX Fisheye Nikkor ED 10.5mm F2.8G

Optical Dome Port II 100 M (#30134)
Designed exclusively for Tokina AT-X 107 DX Fisheye 10-17mm F3.5-4.5, for Nikon and Canon cameras.

Optical Dome Port II 100 L (#30135)
Designed exclusively for Canon EF 8-15mm F4L USM* and Nikon AF-S Fisheye Nikkor 8-15mm F3.5-4.5 E ED *When using with a camera equipped with an APS – C sensor such as MDX – 80D, vignetting may occur in the four corners when using at the wide end (10 mm) and the shooting distance is short. In that case, use the tele (10.5 mm) or longer focal length.

【Features】
・Uses high quality BK7 crystal glass.
・Two different anti-reflective coatings are employed to optimize image quality, one for the exterior and the other for the interior of the Optical Domes. A multi-layer coating is used on the dome exteriors and the interior of the domes are coated with silicon-dioxide to effectively suppress flare and ghosting. As a result, the refractive index of each port is reduced to less than 0.01% and the domes produce extremely high-contrast images.

Difference in image quality between the Fisheye Dome Port 240 and the Optical Dome Port II 165 under backlit conditions.
Equipment used: Canon 5D Mark lll and EF 16-35mm F2.8L ll. Depth: 5m

Specifications
[Dimensions (DIAxD)] 130 x 64.5(S) / 81(M) / 91(L) mm / 5.1 x 2.5(S) / 3.2(M) / 3.6(L) inches
[Weight] Approx. 372g / 13.1oz(S) 423g / 14.9oz(M) 450g / 15.9oz(L)
[Depth rating] 100m / 330ft
[Construction] POM resin ,BK7 crystal glass,(dome) and corrosion-resistant aluminum alloy(shade)
[Accessories] Instruction Manual,Port Cover,Port Case
