After two years of development work, we are very proud to present our DISCOVER valve set. The set is available in 232 & 300 Bar versions and 3/4 NPS. Versions sold in North America are provided with a burst assembly, in accordance with CGA V4.1. This is what some refer to has a “Lola Style” valve.

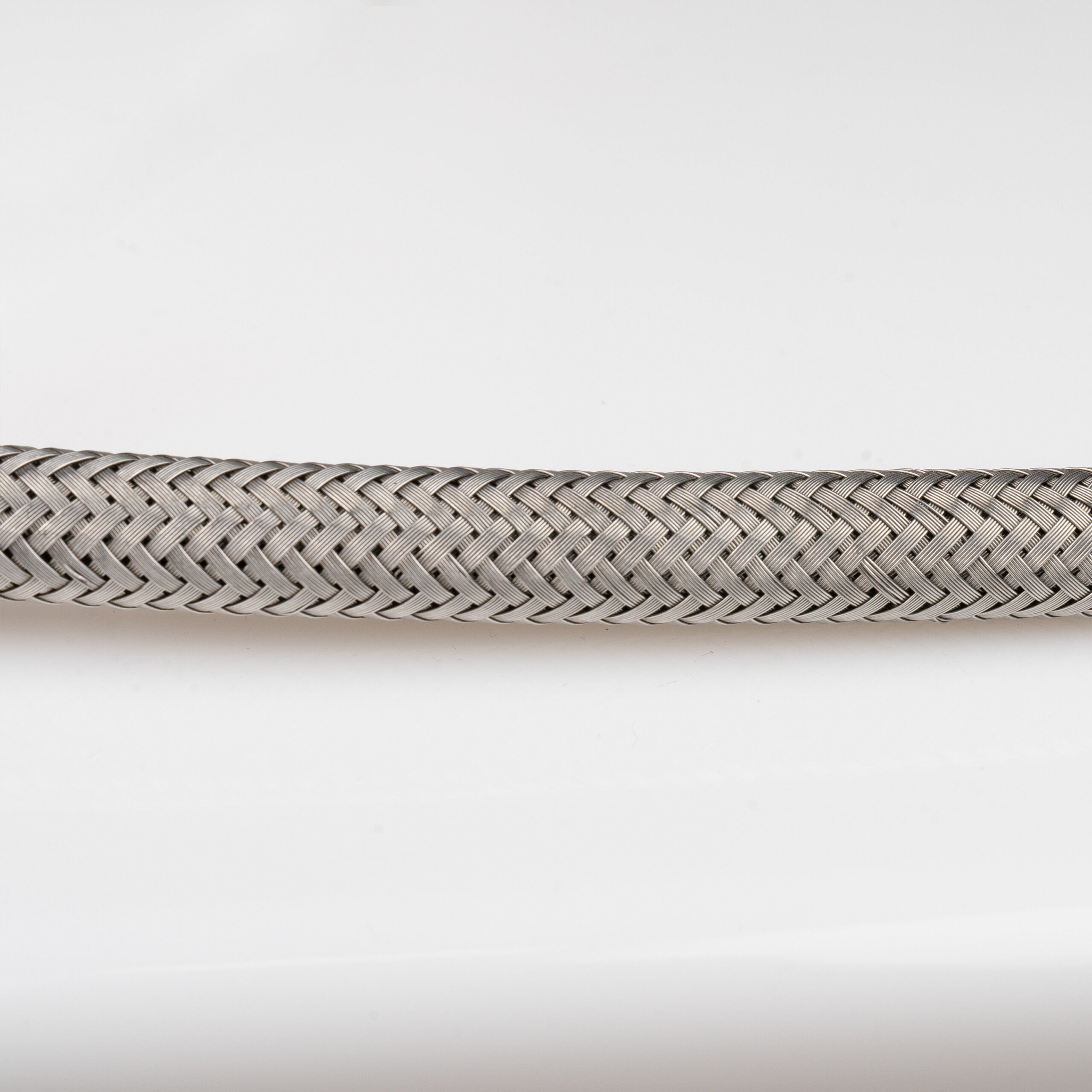

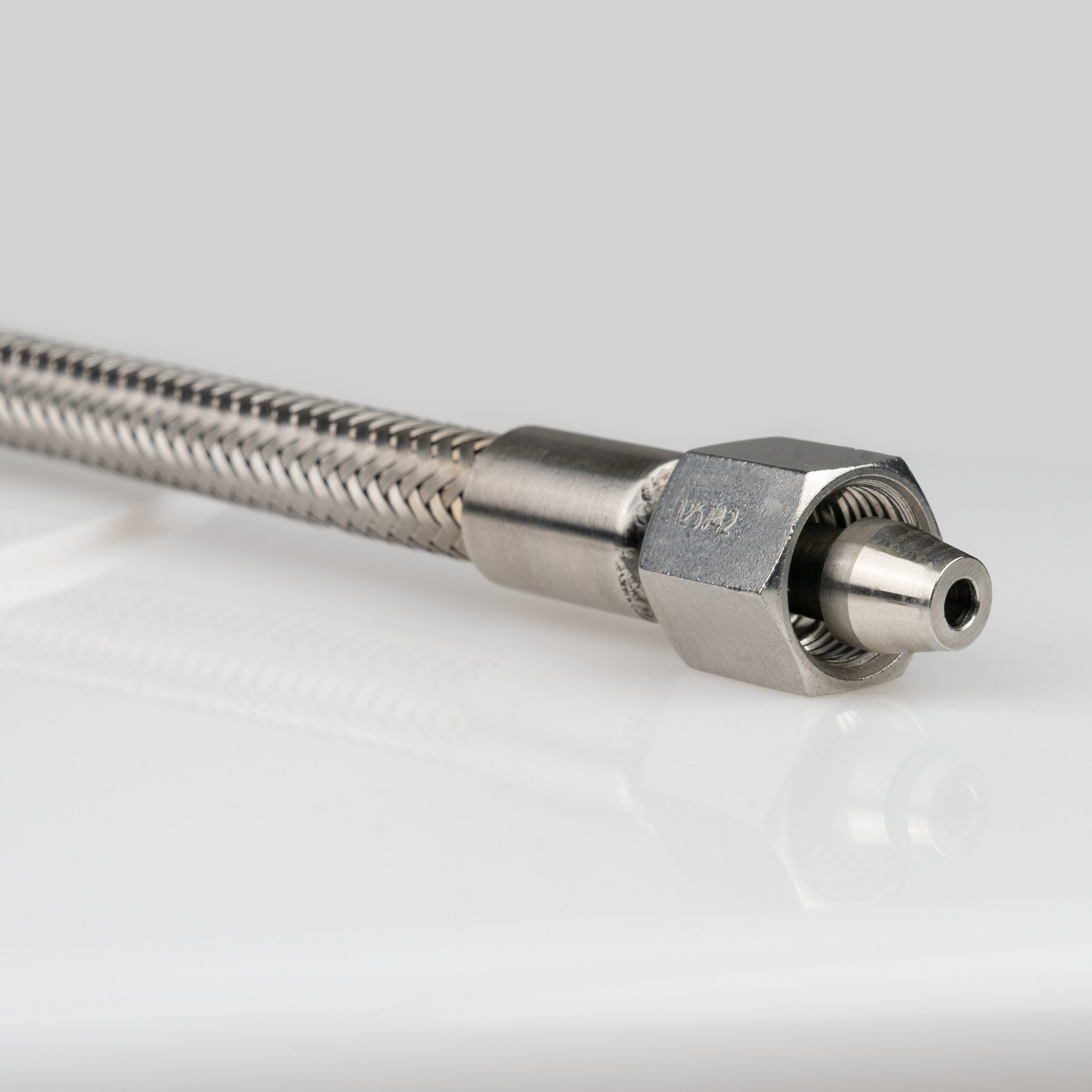

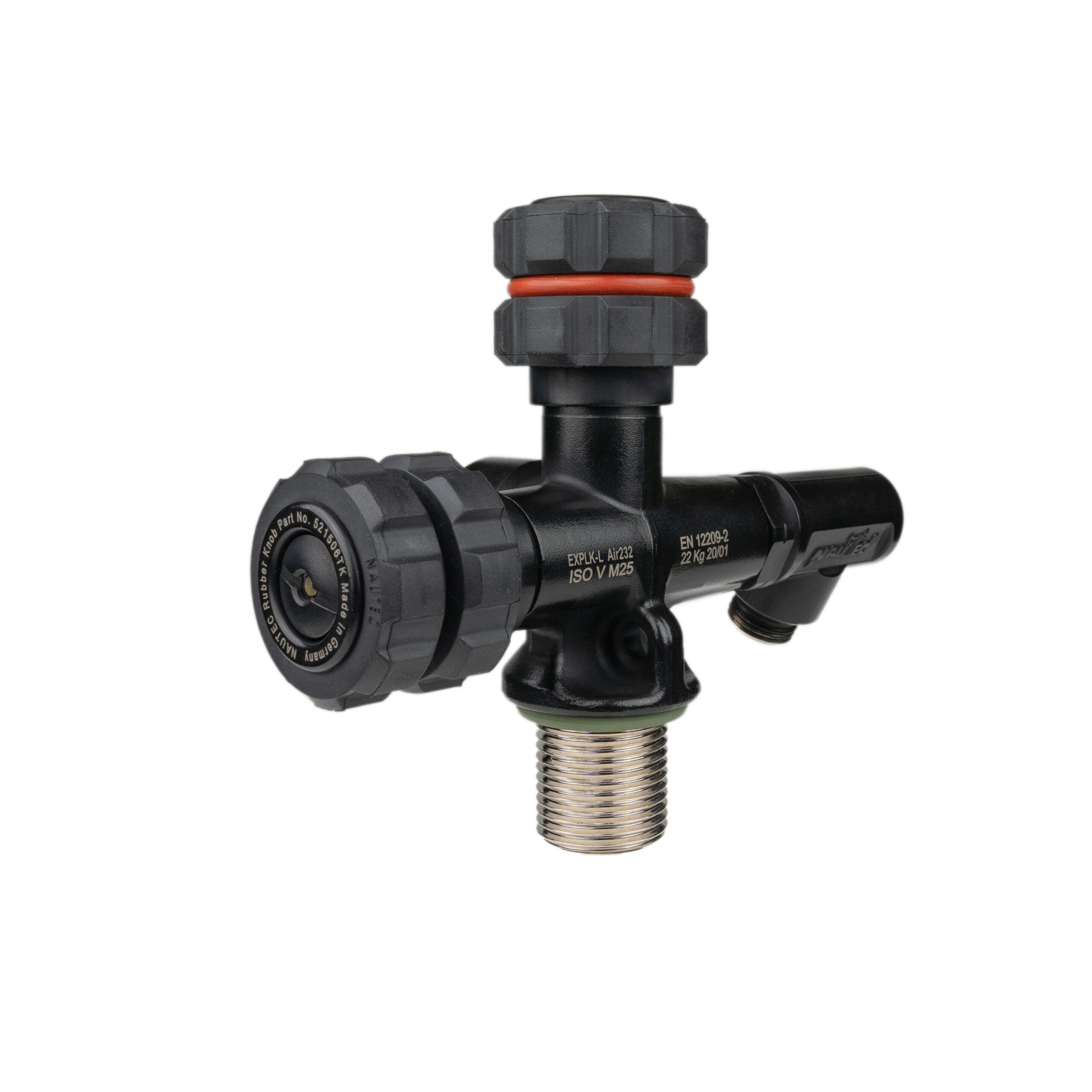

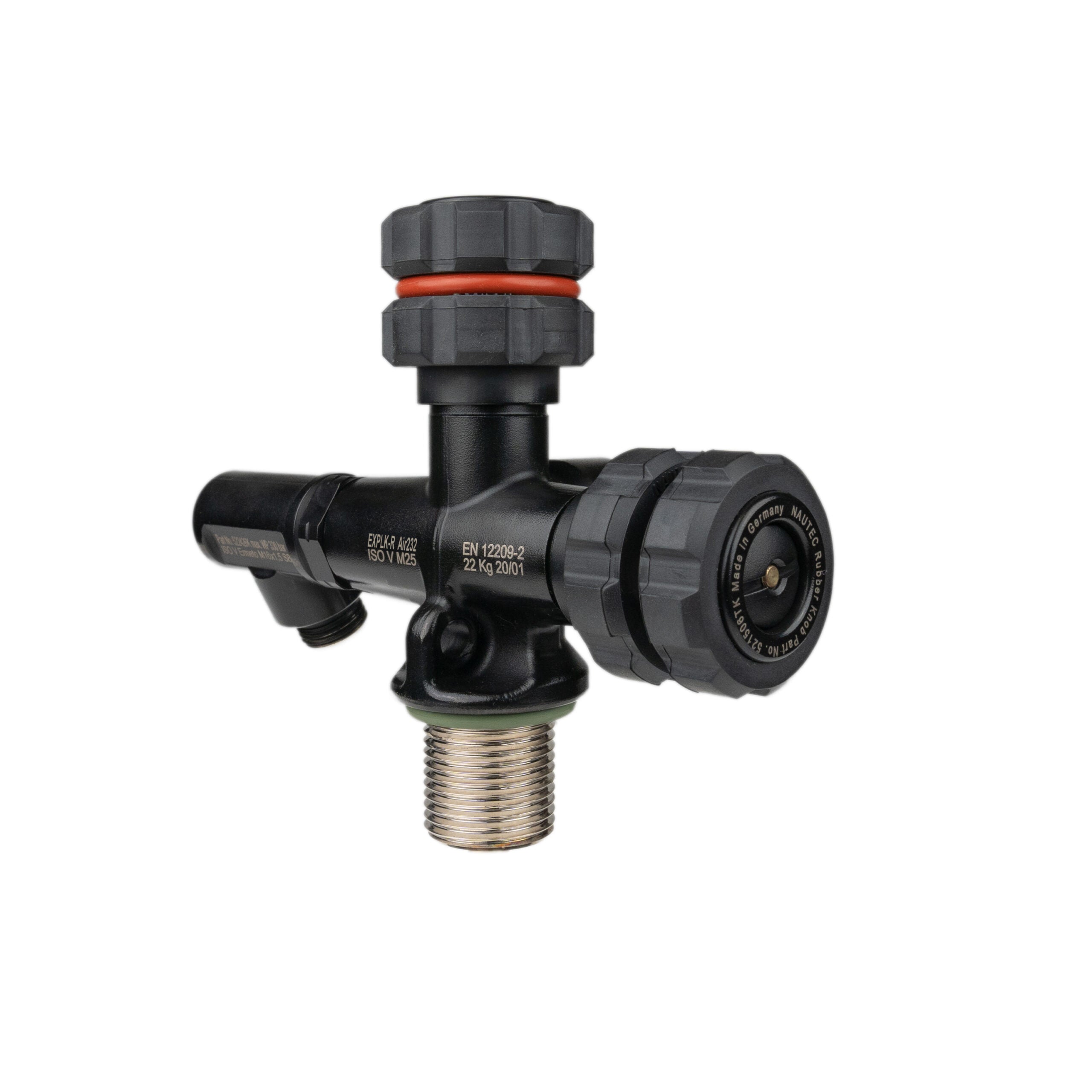

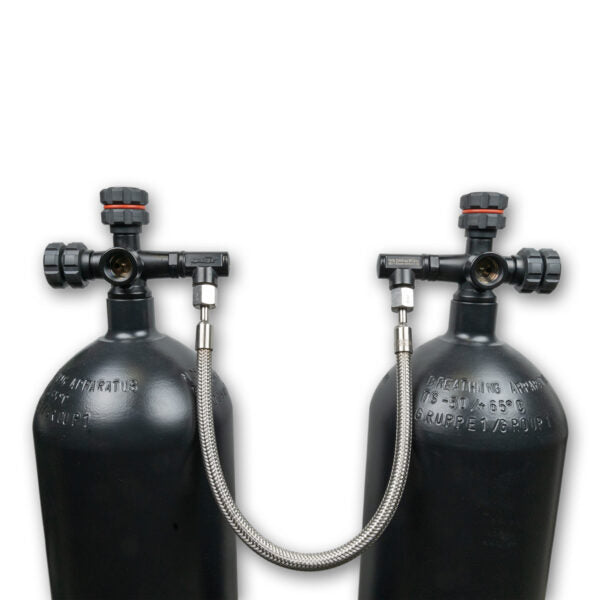

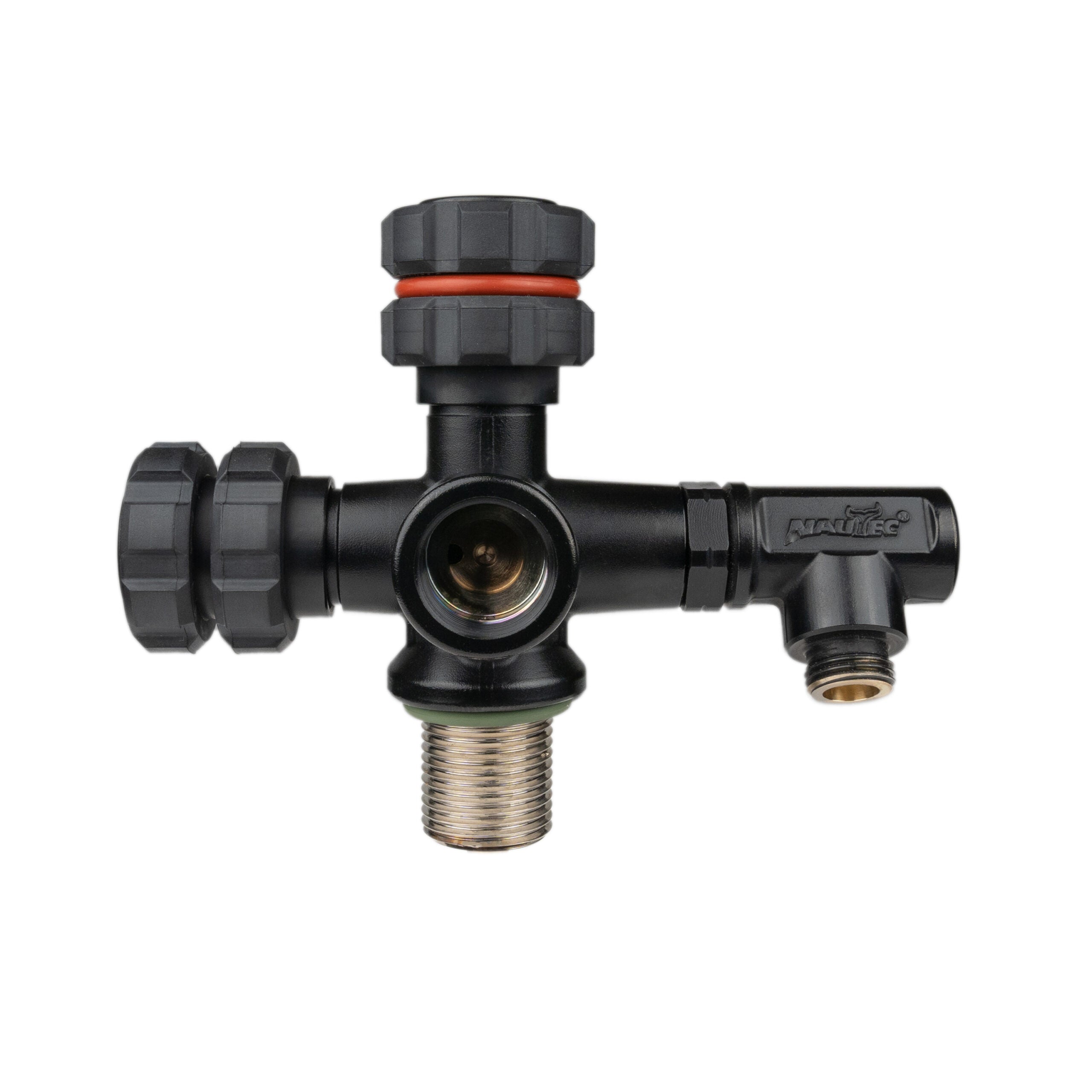

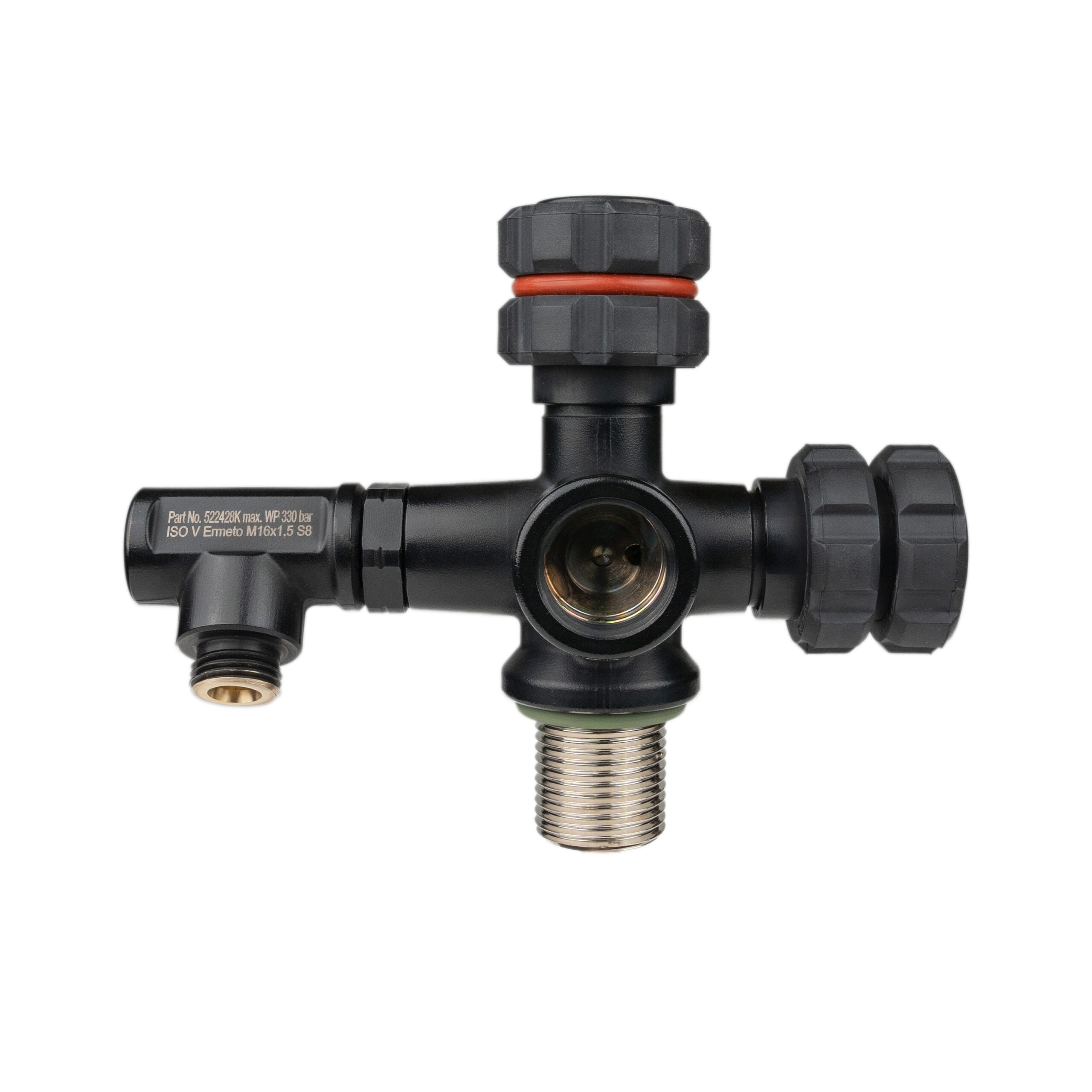

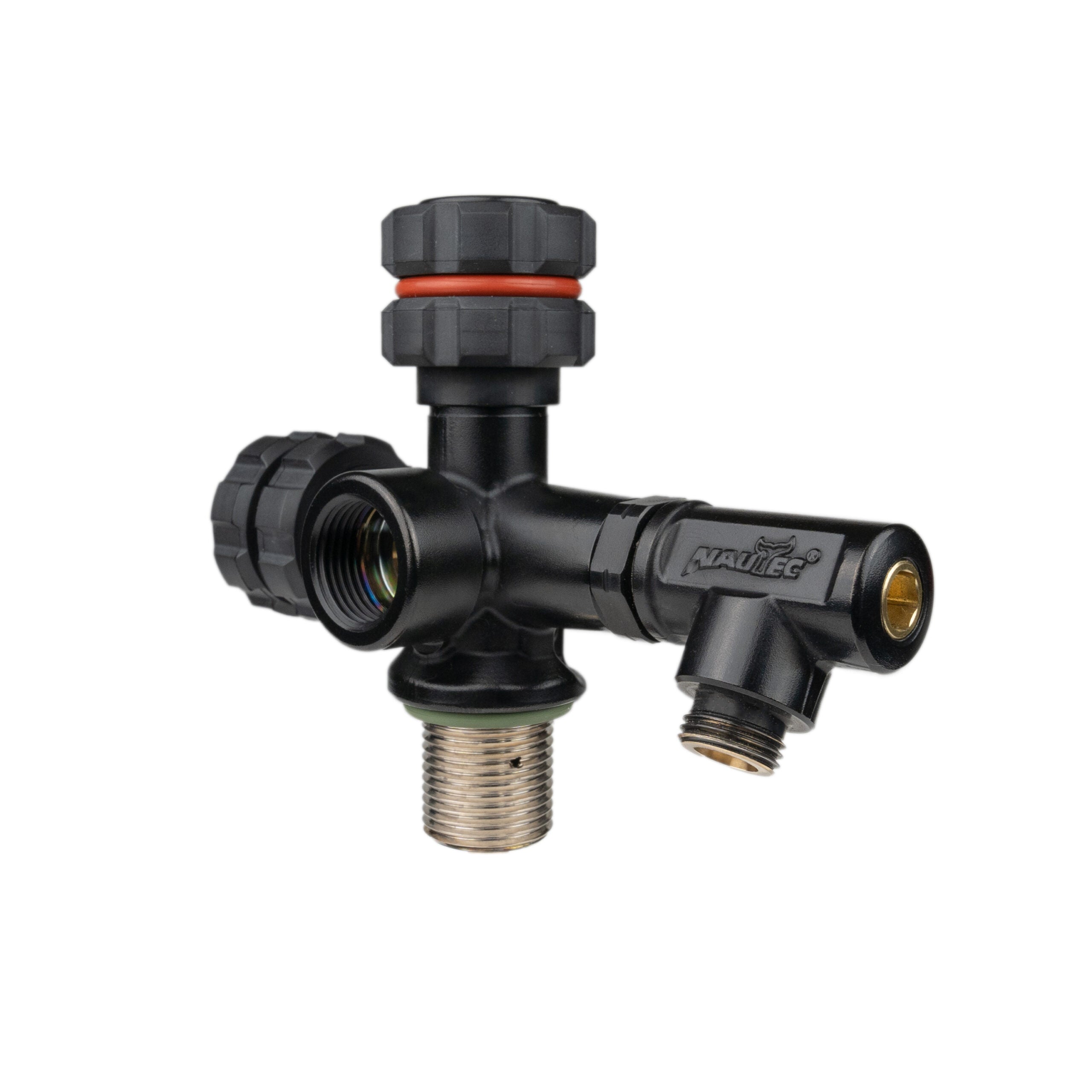

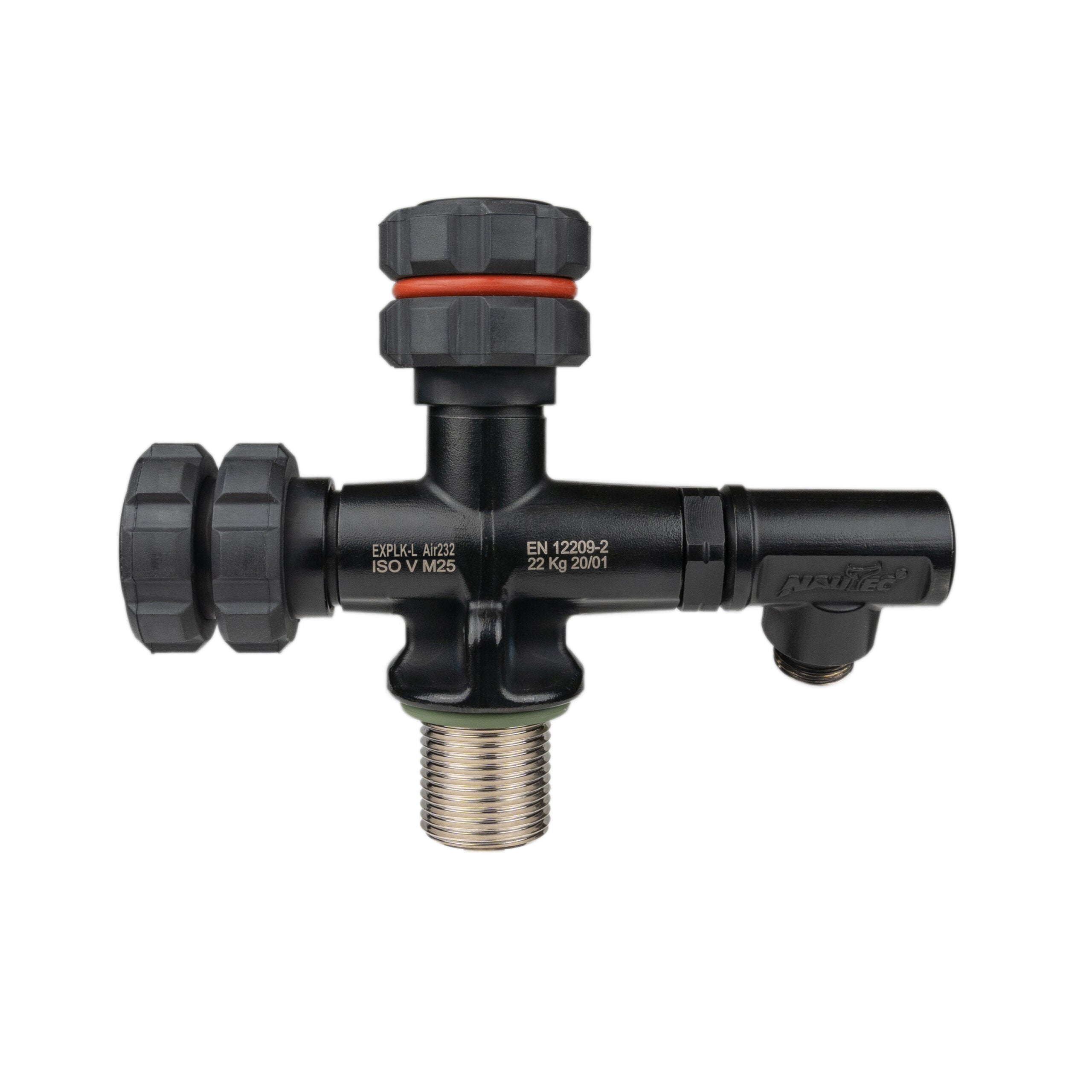

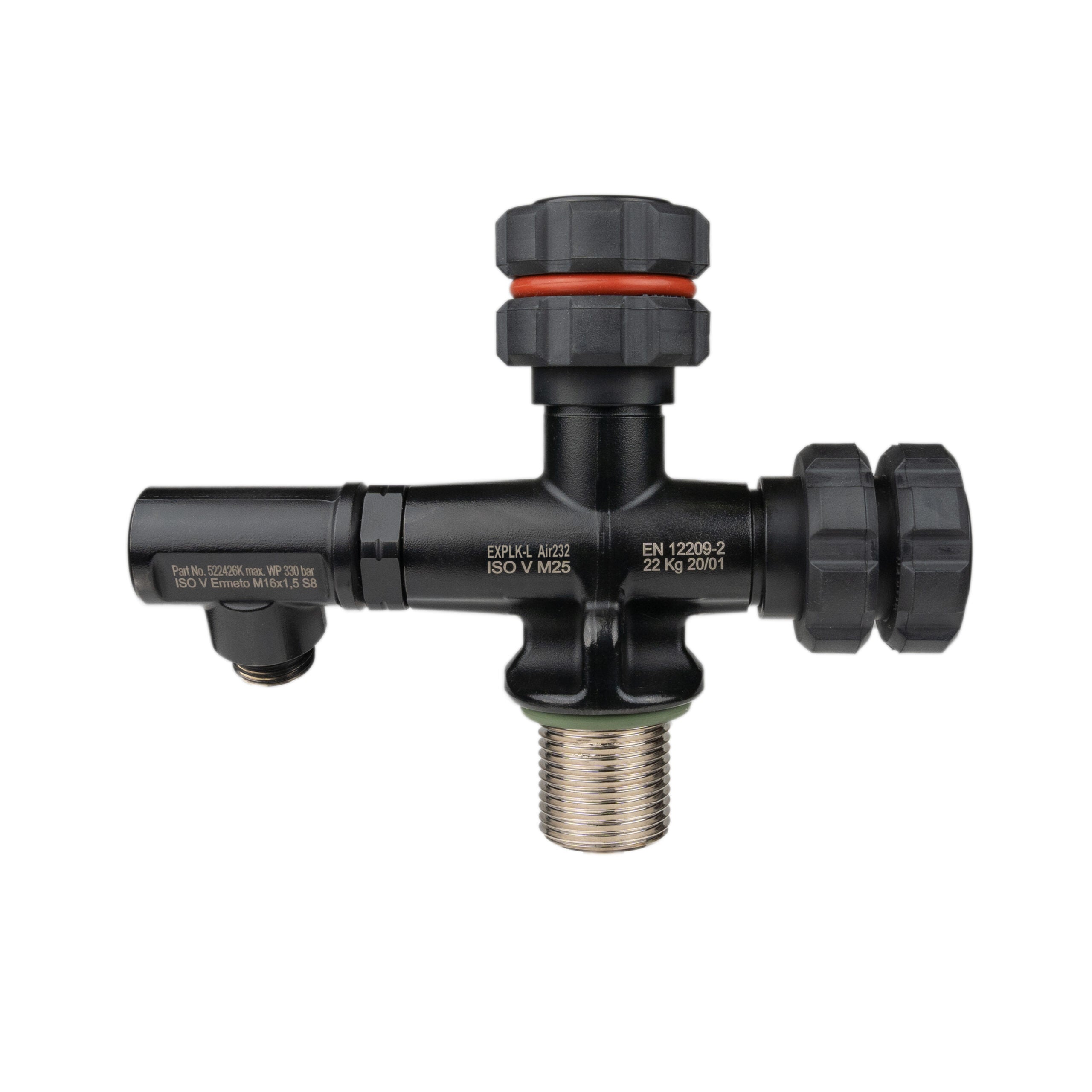

The set includes a left and a right valve, each with a vertical dedicated shut off. The shut offs controls air flow through the elbows and a flexible stainless steel air hose of 54cms in length. One elbow features a dedicated pressure relief device.

Valves are constructed from a military grade brass alloy that

offers a superior corrosion resistance to normal brass,

ensures absolute gas tightness even with helium,

is 100% oxygen compatible,

ensures exceptional mechanical strength giving a burst pressure in excess of 700 bar,

provides superior resistance to high heat

with two Nautec micro filters

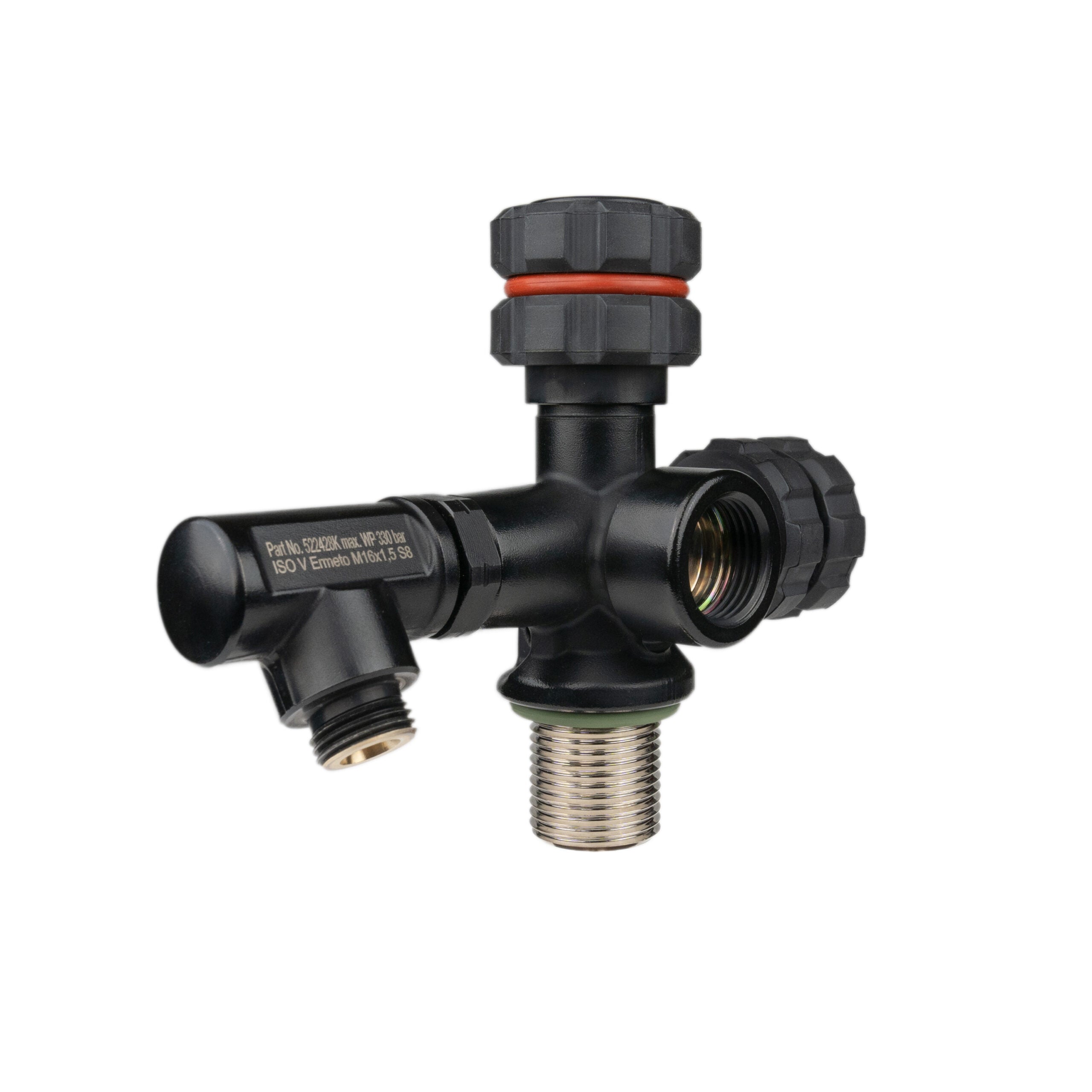

For GUE-Divers, who are looking for an alternative configuration, we offer the valves without the elbows and the hose. A female G1/4 outlet on each valve, enables the attachment of a variety of SwageLock fitting options.

Order:

3/4 NPS 232 Bar p/n
3/4 NPS 300 Bar p/n

Attention! Do not attempt to repair NAUTEC-valves yourself. Unauthorized repair or tampering is hazardous and WILL VOID your warranty and NAUTEC liability. Maintenance and repairs by NAUTEC trained experts only!
